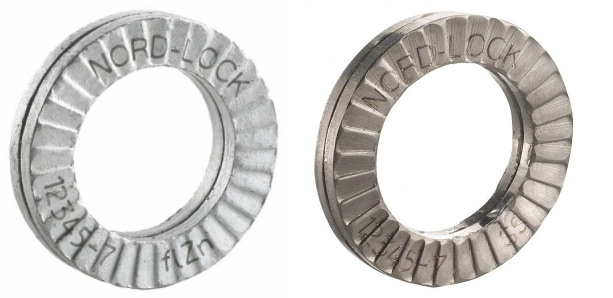

NORD-LOCK 双碟锁紧垫片

2022-01-10

NORD-LOCK 编码规则

NL+尺寸 碳钢 , NL+尺寸+SP 碳钢加大尺 ; NL+尺寸SS 不锈钢, NL+尺寸+SPSS 不锈钢加大

我司也可以提供NORD-LOCK 不锈钢替代品 ,欢迎询价 0755-29969296 邮箱:sales@sun-long.cn


垫片尺寸                     盒装量 碳钢镀锌 不锈钢
Bolt size φ ext. Min.qty Wahser 料号 Wahser 料号
Metric UNC mm /box size number size number
M3 #5 7.0 200 NL3 1206 NL3ss 1069
M3,5 #6 7.6 200 NL3,5 1207 NL3,5ss 1070
M3,5 #6 9.0 200 NL3,5sp 1208 NL3,5spss 1071
M4 #8 7.6 200 NL4 1209 NL4ss 1072
M4 #8 9.0 200 NL4sp 1212 NL4spss 1074
M5 #10 9.0 200 NL5 1213 NL5ss 1075
M5 #10 10.8 200 NL5sp 1218 NL5spss 1079
M6 10.8 200 NL6 1219 NL6ss 1080
M6 13.5 200 NL6sp 1226 NL6spss 1083
1/4″ 11.5 200 NL1/4″ 1229 NL1/4″ss 1085
1/4″ 13.5 200 NL1/4″ 1230 NL1/4″sps 1086
M8 5/16″ 13.5 200 NL8 1231 NL8ss 1087
M8 5/16″ 16.6 200 NL8sp 1236 NL8spss 1090
3/8″ 16.6 200 NL3/8″ 1240 NL3/8″ss 1091
3/8″ 21.0 200 NL3/8″ 1242 NL3/8″sps 1093
M10 16.6 200 NL10 1244 NL10ss 1094
M10 21.0 200 NL10sp 1250 NL10spss 1099
M11 7/16″ 18.5 200 NL11 1256 NL11ss 1101
M12 19.5 200 NL12 1262 NL12ss 1103
M12 25.4 100 NL12sp 1268 NL12spss 1107
1/2″ 19.5 200 NL1/2″ 2146 NL1/2″ss 1109
1/2″ 25.4 100 NL1/2″ 1275 NL1/2″sps 1110
M14 9/16″ 23.0 100 NL14 1644 NL14ss 1111
M14 9/16″ 30.7 100 NL14sp 1667 NL14spss 1112
M16 5/8″ 25.4 100 NL16 1286 NL16ss 1113
M16 5/8″ 30.7 100 NL16sp 1646 NL16spss 1117
M18 29.0 100 NL18 1297 NL18ss 1119
M18 34.5 100 NL18sp 1302 NL18spss 1120
3/4″ 30.7 100 NL3/4″ 1303 NL3/4″ss 1121
3/4″ 39.0 100 NL3/4″ 1305 NL3/4″sps 1122
M20 30.7 100 NL20 1307 NL20ss 1123
M20 39.0 100 NL20sp 1313 NL20spss 1127
M22 7/8″ 34.5 100 NL22 1316 NL22ss 1128
M22 7/8″ 42.0 50 NL22sp 2151 NL22spss 1129
M24 39.0 100 NL24 1321 NL24ss 1130
M24 48.5 50 NL24sp 1326 NL24spss 1132
1″ 39.0 100 NL1″ 1328 NL1″ss 1133
1″ 48.5 50 NL1″sp 1331 NL1″spss 1134
M27 42.0 50 NL27 1669 NL27ss 1135
M27 48.5 25 NL27sp 1671 NL27spss 1136
M30 11/8″ 47.0 50 NL30 1341 NL30ss 1139
M30 11/8″ 58.5 25 NL30sp 1345 NL30spss 1140
M33 11/4″ 48.5 25 NL33 1670 NL33ss 1141
M33 11/4″ 58.5 25 NL33sp 1350 NL33spss
M36 13/8″ 55.0 25 NL36 1352 NL36ss 1142
M36 13/8″ 63.0 25 NL36sp 1355 NL36spss
M39 11/2″ 58.5 25 NL39 1357 NL39ss 1143
M42 63.0 25 NL42 1359 NL42ss 1144
M45 13/4″ 70.0 25 NL45 1362 NL45ss 1144
M48 75.0 25 NL48 1363 NL48ss 1144
M52 2″ 80.0 25 NL52 1364 NL52ss 1144
M56 21/4″ 85.0 10 NL56 1365 NL56ss 1144
M60 90.0 10 NL60 1367 NL60ss 1144
M64 21/2″ 95.0 10 NL64 1369 NL64ss 1144
M68 100.0 1 NL68 1370 NL68ss 1144
M72 105.0 1 NL72 1371 NL72ss 1144
M76 3″ 110.0 1 NL76 1372 NL76ss 1144
M80 115.0 1 NL80 1373 NL80ss 1144
